The notion of proof is central to so many fields. In mathematics, we want to prove that a certain assertion is correct. In other sciences, we often want to accumulate a preponderance of evidence (or statistical significance) to reject certain hypothesis. In criminal law the prosecution famously needs to prove its case “beyond a reasonable doubt”. Cryptography turns out to give some new twists on this ancient notion.

Typically a proof that some assertion X is true, also reveals some information about why X is true. When Hercule Poirot proves that Norman Gale killed Madame Giselle he does so by showing how Gale committed the murder by dressing up as a flight attendant and stabbing Madame Gisselle with a poisoned dart. Could Hercule convince us beyond a reasonable doubt that Gale did the crime without giving any information on how the crime was committed? Can the Russians prove to the U.S. that a sealed box contains an authentic nuclear warhead without revealing anything about its design? Can I prove to you that the number \(m=385,608,108,395,369,363,400,501,273,594,475,104,405,448,848,047,062,278,473,983\) has a prime factor whose last digit is \(7\) without giving you any information about \(m\)’s prime factors? We won’t answer the first question, but will show some insights on the latter two.

Zero knowledge proofs are proofs that fully convince that a statement is true without yielding any additional knowledge. So, after seeing a zero knowledge proof that \(m\) has a factor ending with \(7\), you’ll be no closer to knowing \(m\)’s factorization than you were before. Zero knowledge proofs were invented by Goldasser, Micali and Rackoff in 1982 and have since been used in great many settings. How would you achieve such a thing, or even define it? And why on earth would it be useful? This is the topic of this lecture.

Applications for zero knowledge proofs.

Before we talk about how to achieve zero knowledge, let us discuss some of its potential applications:

Nuclear disarmanent

I think it’s fair to say that Barack Obama and Vladimir Putin don’t see eye to eye on too many topics. However, one point they do agree on is the need for both the U.S. and Russia to reduce their nuclear arsenal. Obama has called in 2009 to set as a long term goal a “world without nuclear weapons” and in 2012 talked about concretely talking to Russia about reducing “not only our strategic nuclear warheads, but also tactical weapons and warheads in reserve”. Putin has said already in 2000 that he sees “no obstacles that could hamper future deep cuts of strategic offensive armaments” (though lately has been talking about developing new missiles). This is not surprising. The two countries have reached a dangerous and expensive equilibrium by which each has about 7000 nuclear warheads, much more than is needed to wipe out human civilization many times over.1 This not only increases the chance of “leakage” of weapons, but also threatens the delicate balance of the Non-Proliferation Treaty which at its core is a bargain where non-weapons states agree not to pursue nuclear weapons and the five nuclear weapon states agree to make progress on nuclear disarmament. These weapons are also very expensive to maintain. There are many reasons why progress on nuclear disarmanent has been so slow, and most of them have nothing to do with zero knowledge or any other piece of technology. But there are some technical hurdles as well. One of those hurdles is that for the U.S. and Russia to go beyond restricting the number of deployed weapons to significantly reducing the stockpiles, they need to find a way for one country to verifiably prove that it has dismantled warheads. As mentioned in my work with Glaser and Goldston (see also this page), a key stumbling block is that the design of a nuclear warhard is of course highly classified and about the last thing in the world that the U.S. would like to share with Russia and vice versa. So, how can the U.S. convince the Russian that it has destroyed a warhead, when it cannot let Russian experts anywhere near it?

Voting

Electronic voting has been of great interest for many reasons. One potential advantaghe is that it could allow completely transparent vote counting, where every citizen could verify that the votes were counted correctly. For example, Chaum suggested an approach to do so by publishing an encryption of every vote and then having the central authority prove that the final outcome corresponds to the counts of all the plaintexts. But of course to maintain voter privacy, we need to prove this without actually revealing those plaintexts. Can we do so?

More applications

I chose these two examples above exactly because they are hardly the first that come to mind when thinking about zero knowledge. Zero knowledge has been used for many cryptographic applications. One such application (originating from work of Fiat and Shamir) is the use for identification protocols. Here Alice knows a solution \(x\) to a puzzle \(P\), and proves her identity to Bob by, for example, providing an encryption \(c\) of \(x\) and proving in zero knowledge that \(c\) is indeed an encryption of a solution for \(P\).2 Bob can verify the proof, but because it is zero knowledge, learns nothing about the solution of the puzzle and will not be able to impersonate Alice. An alternative approach to such identification protocols is through using digital signatures; this connection goes both ways and zero knowledge proofs have been used by Schnorr and others as a basis for signature schemes.

Another very generic application is for “compiling protocols”. As we’ve seen time and again, it is often much easier to handle passive adversaries than active ones. Thus it would be wonderful if we could “compile” a protocol that is secure with respect to passive attacks into one that is secure with respect to active ones. As was first shown by Goldreich, Micali, and Wigderson, zero knowledge proofs yield a very general such compiler. The idea is that all parties prove in zero knowledge that they follow the protocol’s specifications. Normally, such proofs might require the parties to reveal their secret inputs, hence violating security, but zero knowledge precisely guarantees that we can verify correct behaviour without access to these inputs.

Defining and constructing zero knowledge proofs

So, zero knowledge proofs are wondeful objects, but how do we get them? In fact, we haven’t answered the even more basic question of how do we define zero knowledge? We have to start by the most basic task of defining what we mean by a proof.

A proof system can be thought of as an algorithm \(\Pi\) that takes as input a statement which is some string \(x\) and another string \(\pi\) known as the proof and outputs \(1\) if and only if \(\pi\) is a valid proof that the statement \(x\) is correct. For example:

All these proof systems have the property that the verifying algorithm \(\Pi\) is efficient. Indeed, that’s the whole point of a proof \(\pi\)- it’s a sequence of symbols that makes it easy to verify that the statement is true.

To achieve the notion of zero knowledge proofs, Goldwasser and Micali had to consider a generalization of proofs from static sequences of symbols to interactive probabilistic protocols between a prover and a verifier. Lets start with an informal example:

Suppose that Alice is a tetrachormat and can distinguish between the color of two pieces of plastic that are otherwise identical. How can she prove this to Bob? Here is one protocol. They will repeat the following experiment: Alice turns her back and Bob tosses a coin and with probability 1/2 leaves the pieces as they are, and with probability 1/2 switches the right piece with the left piece. Alice needs to guess whether Bob switched the pieces or not. If she is always successful after \(n\) repetition then Bob will have \(1-2^{-n}\) confidence that the pieces are truly different.

Now consider a more “mathematical” example along similar lines. Recall that if \(x\) and \(m\) are numbers then we say that \(x\) is a quadratic residue modulo \(m\) if there is some \(s\) such that \(x=s^2 \pmod{m}\). It is very easy to prove that \(x\) is a quadratic residue, but can Alice, even if she can do arbitrary computations, prove to Bob that \(x\) is not a residue? Here is one way to do this. Given \(x\) and \(m\), Bob will pick some random \(s\in {\mathbb{Z}}^*_m\) (e.g., by picking a random number in \(\{1,\ldots,m-1\}\) and discarding it if it has nontrivial g.c.d. with \(m\)) and toss a coin \(b\in{\{0,1\}}\). If \(b=0\) then Bob will send \(s^2 \pmod{m}\) to Alice and otherwise he will send \(xs^2 \pmod{m}\) to Alice. Alice will respond with \(b'=0\) if Bob sent a quadratic residue and with \(b'=1\) otherwise. Now note that if \(x\) is a non-residue then \(xs^2\) will have to be a non-residue as well (since if it had a root \(s'\) then \(s's^{-1}\) would be a root of \(x\)). Hence it will always be the case that \(b'=b\). Moreover, if \(x\) was a quadratic residue of the form \(x=s'^2 \pmod{m}\) for some \(s'\), then \(xs^2=(s's)^2\) is simply a random quadratic residue, which means that in this case Bob’s message is distributed the same regardless of whether \(b=0\) or \(b=1\), and no matter what she does, Alice has probability at most \(1/2\) of guessing \(b\). Hence if Alice is always successful than after \(n\) repetitions Bob would have \(1-2^{-n}\) confidence that \(x\) is indeed a non-residue modulo \(m\).

Let us now make the formal definition:

Definition: Let \(L\) be some subset of \({\{0,1\}}^*\). A probabilistic proof for \(L\) is a pair of interactive algorithms \((P,V)\) such that \(V\) runs in polynomial time and:

Note that we don’t necessarily require the prover to be efficient (and indeed, in examples such as the graph non-isomorphism question, it might not be). On the other hand, our soundness condition holds even if the prover uses a non efficient strategy.4 We say that a proof system has an efficient prover if there is an NP-type proof system \(\Pi\) for \(L\) (that is some efficient algorithm \(\Pi\) such that there exists \(\pi\) with \(\Pi(x,\pi)=1\) iff \(x\in L\) and such that \(\Pi(x,\pi)=1\) implies that \(|\pi|\leq poly(|x|)\)), such that the strategy for \(P\) can be implemented efficiently given any static proof \(\pi\) for \(x\) in this system.

Notation for strategies: Up until now, we always considered cryptographic protocols where Alice and Bob trusted one another, but were worries about some adversary controlling the channel between them. Now we are in a somewhat more “suspicious” setting where the parties do not fully trust one another. In such protocols there is always a “prescribed” or honest strategy that a particular party should follow, but we generally don’t want the other parties’ security to rely on some else’s good intention, and hence analyze also the case where a party uses an arbitrary malicious strategy. We sometimes also consider the honest but curious case where the adversary is passive and only collects information, but does not deviate from the prescribed strategy. Note that protocols typically only guarantee security for party A when it behaves honestly - a party can always chose to violate its own security and there is not much we can (or should?) do about it.

Defining zero knowledge

So far we merely defined the notion of an interactive proof system, but we need to define what it means for a proof to be zero knowledge. Before we attempt a definition, let us consider an example. Going back to the notion of quadratic residuosity, suppose that \(x\) and \(m\) are public and Alice knows \(s\) such that \(x=s^2 \pmod{m}\). She wants to convince Bob that this is the case. However she prefers not to reveal \(s\). Can she convince Bob that such an \(s\) exist without revealing any information about it? Here is a way to do so:

Protocol ZK-QR:

  1. Public input for Alice and Bob: \(x,m\); Alice’s private input is \(s\) such that \(x=s^2 \pmod{m}\).
  2. Alice will pick a random \(s'\) and send to Bob \(x' = xs'^2 \pmod{m}\).
  3. Bob will pick a random bit \(b\in{\{0,1\}}\) and send \(b\) to Alice.
  4. If \(b=0\) then Alice reveals \(ss'\), hence giving out a root for \(x'\); if \(b=1\) then Alice reveals \(s'\), hence showing a root for \(x'x^{-1}\).
  5. Bob checks that the value \(s''\) revealed by Alice is indeed a root of \(x'x^{-b}\), if so then it “accepts” this round.

If \(x\) was not a quadratic residue then no matter how \(x'\) was chosen, either \(x'\) or \(x'x^{-1}\) is not a residue and hence Bob will reject each round eith probability at least \(1/2\). On the other hand, we claim that we didn’t really reveal anything about \(s\). Indeed, if Bob chooses \(0\), then the two messages he sees can be thought of as a random quadratic residue \(x'\) and its root, while if Bob chooses \(1\), then the two messages he sees are \(x\) times a random quadratic residue, and the root of that residue. In both cases, the distribution of these two messages is completely independent of \(s\), and hence intuitively yields no additional information about it beyond whatever Bob knew before.

To define zero knowledge mathematically we follow the following intuition:

A proof system is zero knowledge if the verifier did not learn anything after the interaction that he could not have learned on his own.

Here is how we formally define this:

Definition: A proof system \((P,V)\) for \(L\) is zero knowledge if for every efficient verifier strategy \(V^*\) there exists an efficient probabilistic algorithm \(S^*\) (known as the simulator) such that for every \(x\in L\), the following random variables are computationally indistinguishable:

That is, we can show the verifier does not gain anything from the interaction, because no matter what algorithm \(V^*\) he uses, whatever he learned as a result of interacting with the prover, he could have just as equally learned by simply running the standalone algorithm \(S^*\) on the same input. Bernard Chazelle once put it more colorfully:

Zero knowledge is masturbation masquerading as sex.

The simulation paradigm: The natural way to define security is to say that a system is secure if some “laundry list” of bad outcomes X,Y,Z can’t happen. The definition of zero knowledge is different. Rather than giving a list of the events that are not allowed to occur, it gives a maximalist simulation condition. That is, at its heart the definition of zero knowledge says the following: clearly, we cannot prevent the verifier from running an efficient algorithm \(S^*\) on the public input, but we want to ensure that this is the most he can learn from the interaction. This simulation paradigm has become the standard way to define security of a great many cryptographic applications. That is, we bound what an adversary Eve can learn by postulating some hypothetical adversary Lilith that is under much harsher conditions (e.g., does not get to interact with the prover) and ensuring that Eve cannot learn anything that Lilith couldn’t have learned either. This has an advantage of being the most conservative definition possible, and also phrasing security in positive terms- there exists a simulation - as opposed to the typical negative terms - events X,Y,Z can’t happen. Since it’s often easier for us to think of positive terms, paradoxically sometimes this stronger security condition is easier to prove. Zero knowledge is in some sense the simplest setting of the simulation paradigm and we’ll see it time and again in dealing with more advanced notions.

The definition of zero knowledge is confusing since intuitively one thing that if the verifier gained confidence that the statement is true than surely he must have learned something. This is another one of those cases where cryptography is counterintuitive. To understand it better, it is worthwhile to see the formal proof that the protocol above for quadratic residousity is zero knowledge:

Theorem: Protocol ZK-QR above is a zero knowledge protocol.

Proof: Let \(V^*\) be an arbitrary efficient strategy for Bob. Since Bob only sends a single bit, we can think of this strategy as composed of two functions:

Both \(V_1\) and \(V_2\) are efficiently computable. We now need to come up with an efficient simulator \(S^*\) that is a standalone algorithm that on input \(x,m\) will
output a distribution indistinguishable from the output \(V^*\). The simulator \(S^*\) will work as follows:

  1. Pick \(b'{\leftarrow_R\;}{\{0,1\}}\).
  2. Pick \(s''\) at random in \({\mathbb{Z}}^*_m\). If \(b=0\) then let \(x'={s''}^2 \pmod{m}\). Otherwise output \(x'=x{s''}^2 \pmod{m}\).
  3. Let \(b=V_1(x,m,x')\). If \(b \neq b'\) then go back to step 1.
  4. Output \(V_2(x,m,x',s'')\).

The correctness of the simulator follows from the following claims (all of which assume that \(x\) is actually a quadratic residue, since otherwise we don’t need to make any guarantees and in any case Alice’s behaviour is not well defined):

Claim 1: The distribution of \(x'\) computed by \(S^*\) is identical to the distribution of \(x'\) chosen by Alice.

Claim 2: With probability at least \(1/2\), \(b'=b\).

Claim 3: Conditioned on \(b=b'\) and the value \(x'\) computed in step 2, the value \(s''\) computed by \(S^*\) is identical to the value that Alice sends when her first message is \(X'\) and Bob’s response is \(b\).

Together these two claims imply that in expectation \(S^*\) only invokes \(V_1\) and \(V_2\) a constant number of times (since every time it goes back to step 1 with probability at most \(1/2\)). They also imply that the output of \(S^*\) is in fact identical to the output of \(V^*\) in a true interaction with Alice. Thus, we only need to prove the claims, which is actually quite easy:

Proof of Claim 1: In both cases, \(x'\) is a random quadratic residue. QED

Proof of Claim 2: This is a corollary of Claim 1; since the distribution of \(x'\) is identical to the distribution chosen by Alice, in particular \(x'\) gives out no information about the choice of \(b'\). QED

Proof of Claim 3: This follows from a direct calculation. The value \(s''\) sent by Alice is a square root of \(x'\) if \(b=0\) and of \(x'x^{-1}\) if \(x=1\). But this is identical to what happens for \(S^*\) if \(b=b'\). QED

Together these complete the proof of the theorem.

This is not enough since the protocol that we really need to show is zero knowledge is the one where we repeat this procedure \(n\) times. This is a general theorem that if a protocol is zero knowledge then repeating it polynomially many times one after the other (so called “sequential repetition”) preserves zero knowledge. You can think of this as cryptography’s version of the equality “\(0+0=0\)”, but as usual, intuitive things are not always correct and so this theorem does require (a not super trivial) proof. It is a good exercise to try to prove it on your own. There are known ways to achieve zero knowledge with negligible soundness error and a constant number of communication rounds, see Goldreich’s book (Vol 1, Sec 4.9).

Zero knowledge proof for Hamiltonicity.

We now show a proof for another language. Suppose that Alice and Bob know an \(n\)-vertex graph \(G\) and Alice knows a Hamiltonian cycle \(C\) in this graph (i.e.. a legth \(n\) simple cycle- one that traverses all vertices exactly once). Here is how Alice can prove that such a cycle exists without revealing any information about it:

Protocol ZK-Ham:

  1. Common input: graph \(H\) (in the form of an \(n\times n\) adjacency matrix); Alice’s private input: a Hamiltonian cycle \(C=(C_1,\ldots,C_n)\) which are distinct vertices such that \((C_\ell,C_{j+1})\) is an edge in \(H\) for all \(\ell\in\{1,\ldots,n-1\}\) and \((C_n,C_1)\) is an edge as well.
  2. Bob chooses a random string \(z\in {\{0,1\}}^{3n}\)
  3. Alice chooses a random permutation \(\pi\) on \(\{1,\ldots, n\}\) and let \(M\) be the \(\pi\)-permuted adjacency matrix of \(H\) (i.e., \(M_{\pi(i),\pi(j)}=1\) iff \((i,j)\) is an edge in \(H\)). For every \(i,j\), Alice chooses a random string \(x_{i,j} \in {\{0,1\}}^n\) and let \(y_{i,j}=G(x_{i,j})\oplus M_{i,j}z\), where \(G:{\{0,1\}}^n\rightarrow{\{0,1\}}^{3n}\) is a pseudorandom generator. She sends \(\{ y_{i,j} \}_{i,j \in [n]}\) to Bob.
  4. Bob chooses a bit \(b\in{\{0,1\}}\).
  5. If \(b=0\) then Alice sends out \(\pi\) and the strings \(\{ x_{i,j} \}\) for all \(i,j\); If \(b=1\) then Alice sends out the \(n\) strings \(x_{\pi(C_1),\pi(C_2)}\),\(\ldots\),\(x_{\pi(C_n),\pi(C_1)}\) together with their indices.
  6. If \(b=0\) then Bob computes \(M\) to be the \(\pi\)-permuted adjacency matrix of \(H\) and verifies that all the \(y_{i,j}\)’s were computed from the \(x_{i,j}\)’s appropriately. If \(b=1\) then verify that the indices of the strings \(\{ x_{i,j } \}\) sent by Alice form a cycle and that indeed \(y_{i,j}=G(x_{i,j})\oplus z\) for every string \(x_{i,j}\) that was sent by Alice.

Theorem5: Protocol ZK-Ham is a zero knowledge proof system for the language of Hamiltonian graphs.

Proof: We need to prove completeness, soundness, and zero knowledge.

Completeness can be easily verified, and so we leave this to the reader.

For soundness, we recall that (as we’ve seen before) with extremely high probability the sets \(S_0=\{ G(x) : x\in{\{0,1\}}^n \}\) and \(S_1 = \{ G(x)\oplus z : x\in{\{0,1\}}^n \}\) will be disjoint (this probability is over the choice of \(z\) that is done by the verifier). Now, assuming this is the case, given the messages \(\{ y_{i,j} \}\) sent by the prover in the first step, define an \(n\times n\) matrix \(M'\) with entries in \(\{0,1,?\}\) as follows: \(M'_{i,j}=0\) if \(y_{i,j}\in S_0\) , \(M'_{i,j}=1\) if \(y_{i,j}\in S_1\) and \(M'_{i,j}=?\) otherwise. We split into two cases. The first case is that there exists some permutation \(\pi\) such that (i) \(M'\) is a \(\pi\)-permuted version of the input graph \(G\) and (ii) \(M'\) contains a Hamiltonian cycle. Clearly in this case \(G\) contains a Hamiltonian cycle as well, and hence we don’t need to consider it when analyzing soundness. In the other case we claim that with probability at least \(1/2\) the verifier will reject the proof. Indeed, if (i) is violated then the proof will be rejected if Bob chooses \(b=0\) and if (ii) is violated then the proof will be rejected if Bob chooses \(b=1\).

We now turn to showing zero knowledge. For this we need to build a simulator \(S^*\) for an arbitrary efficient strategy \(V^*\) of Bob. Recall that \(S^*\) gets as input the graph \(H\) (but not the Hamiltonian cycle \(C\)) and needs to produce an output that is indistinguishable from the output of \(V^*\). It will do so as follows:

  1. Pick \(b'\in{\{0,1\}}\).
  2. Let \(z\in {\{0,1\}}^{3n}\) be the first message computed by \(V^*\) on input \(H\).
  3. If \(b'=0\) then \(S^*\) computes the second message as Alice does: chooses a random permutation \(\pi\) on \(\{1,\ldots, n\}\) and let \(M\) be the \(\pi\)-permuted adjacency matrix of \(H\) (i.e., \(M_{\pi(i),\pi(j)}=1\) iff \((i,j)\) is an edge in \(H\)). In contrast, if \(b'=1\) then \(S^*\) lets \(M\) be the all \(1'\) matrix. For every \(i,j\), \(S^*\) chooses a random string \(x_{i,j} \in {\{0,1\}}^n\) and let \(y_{i,j}=G(x_{i,j})\oplus M_{i,j}z\), where \(G:{\{0,1\}}^n\rightarrow{\{0,1\}}^{3n}\) is a pseudorandom generator.
  4. Let \(b\) be the output of \(V^*\) when given the input \(H\) and the first message \(\{ y_{i,j} \}\) computed as above. If \(b\neq b'\) then go back to step 0.
  5. We compute the fourth message of the protocol similarly to how Alice does it: if \(b=0\) then it consists of \(\pi\) and the strings \(\{ x_{i,j} \}\) for all \(i,j\); If \(b=1\) then we pick a random length-\(n\) cycle \(C'\) and the message consists of the \(n\) strings \(x_{C'_1,C'_2}\),\(\ldots\),\(x_{C'_n,C'_1}\) together with their indices.
  6. Output whatever \(V^*\) outputs when given the prior message.

We prove the output of the simulator is indistinguishable from the output of \(V^*\) in an actual interaction by the following claims:

Claim 1: The message \(\{ y_{i,j} \}\) computed by \(S^*\) is computationally indistinguishable from the first message computed by Alice.

Claim 2: The probability that \(b=b'\) is at least \(1/3\).

Claim 3: The fourth message computed by \(S^*\) is computationally indistinguishable from the fourth message computed by Alice.

We will simply sketch here the proofs (again see Goldreich’s book for full proofs):

For Claim 1, note that if \(b'=0\) then the message is identical to the way Alice computes it. If \(b'=1\) then the difference is that \(S^*\) computes some strings \(y_{i,j}\) of the form \(G(x_{i,j})+z\) where Alice would compute the corresponding strings as \(G(x_{i,j})\) this is indistinguishable because \(G\) is a pseudorandom generator (and the distribution \(U_{3n}\oplus z\) is the same as \(U_{3n}\)).

Claim 2 is a corolloary of Claim 1. If \(V^*\) managed to pick a message \(b\) such that \(\Pr[ b=b' ] < 1/2 - negl(n)\) then in particular it could distinguish between the first message of Alice (that is computed independently of \(b'\) and hence contains no information about it) from the first message of \(V^*\).

For Claim 3, note that again if \(b=0\) then the message is computed in a way identical to what Alice does. If \(b=1\) then this message is also computed in a way identical to Alice, since it does not matter if instead of picking \(C'\) at random, we picked a random permutation \(\pi\) and let \(C'\) be the image of the Hamiltonian cycle under this permutation.

This completes the proof of the theorem. QED

Why is this interesting?

The reason that a protocol for Hamiltonicity is more interesting than a protocol for Quadratic residuosity is that Hamiltonicity is an NP-complete question. This means that for every other NP language \(L\), we can use the reduction from \(L\) to Hamiltonicity combined with protocol ZK-Ham to give a zero knowledge proof system for \(L\). In particular this means that we can have zero knowledge proofs for the following languages:

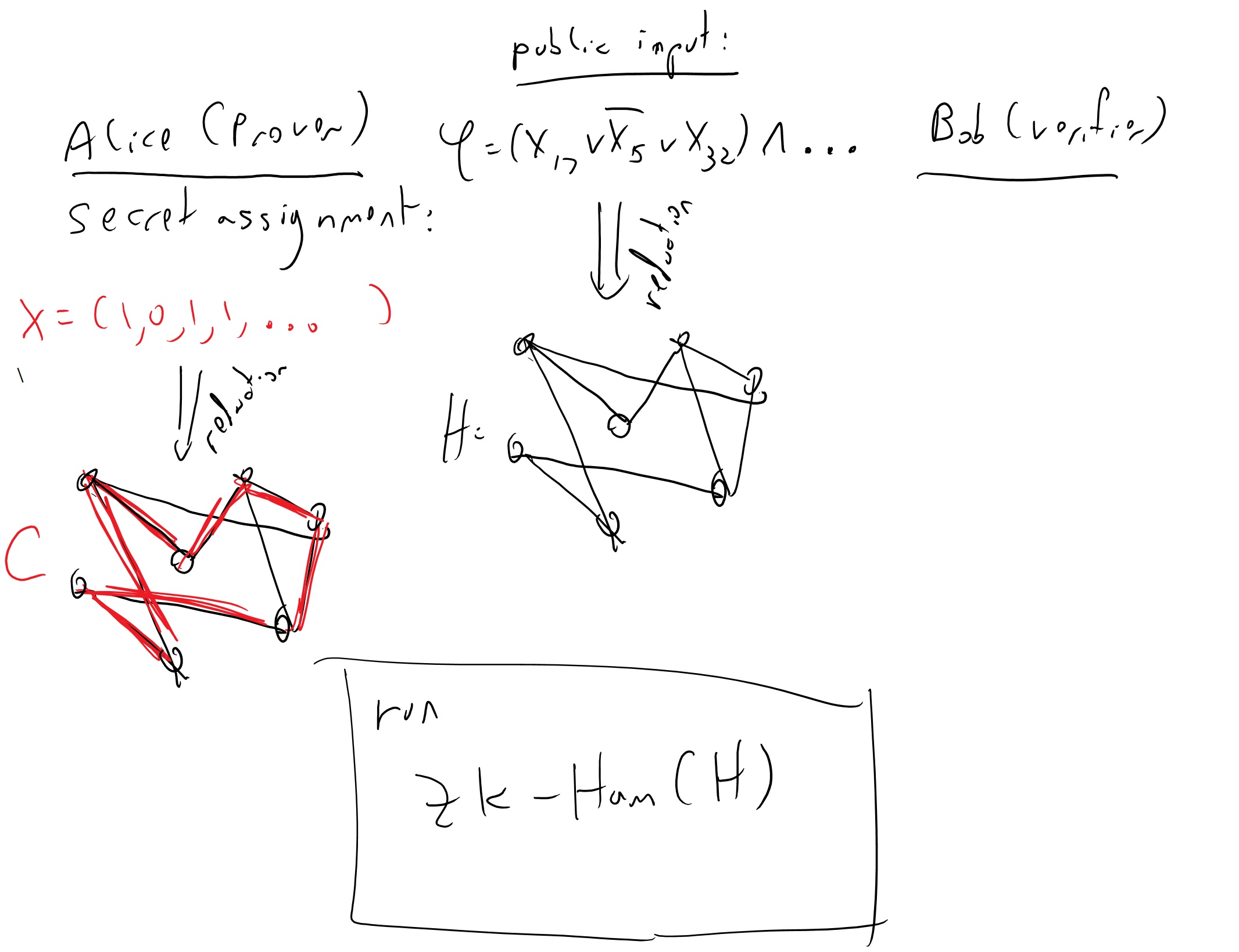

Using a zero knowledge protocol for Hamiltonicity we can obtain a zero knowledge protocol for any language L in NP. For example, if the public input is a SAT formula \varphi and the Prover’s secret input is a satisfying assignment x for \varphi then the verifier can run the reduction on \varphi to obtain a graph H and the prover can run the same reduction to obtain from x a Hamiltonian cycle C in H. They can then run the ZK-Ham protocol to prove that indeed H is Hamiltonian (and hence the original formula was satisfiable) without revealing any information the verifier could not have obtain on his own.

Using a zero knowledge protocol for Hamiltonicity we can obtain a zero knowledge protocol for any language \(L\) in NP. For example, if the public input is a SAT formula \(\varphi\) and the Prover’s secret input is a satisfying assignment \(x\) for \(\varphi\) then the verifier can run the reduction on \(\varphi\) to obtain a graph \(H\) and the prover can run the same reduction to obtain from \(x\) a Hamiltonian cycle \(C\) in \(H\). They can then run the ZK-Ham protocol to prove that indeed \(H\) is Hamiltonian (and hence the original formula was satisfiable) without revealing any information the verifier could not have obtain on his own.

Parallel repetition and turning zero knowledge proofs to signatures.

While we talked about amplifying zero knowledge proofs by running them \(n\) times one after the other, one could also imagine running the \(n\) copies in parallel. It is not trivial that we get the same benefit of reducing the error to \(2^{-n}\) but it turns out that we do in the cases we are interested in here. Unfortunately, zero knowledge is not necessarily preserved. It’s an important open problem whether zero knowledge is preserved for the ZK-Ham protocol mentioned above.
However, Fiat and Shamir showed that in protocols (such as the ones we showed here) where the verifier only sends random bits, then if we replaced this verifier by a random function, then both soundness and zero knowledge are preserved. This suggests a non-interactive version of these protocols in the random oracle model, and this is indeed widely used. Schnorr designed signatures based on this non interactive version.

“Bonus features” of zero knowledge

  1. To be fair, “only” about 170 million americans live in the 50 largest metropolitan areas and so arguably many people will survive at least the initial impact of a nuclear war, though it had been estimated that even a “small” nuclear war involving detonation of 100 not too large warheads could have devastating global consequences.↩

  2. As we’ll see, technically what Alice needs to do in such a scenario is use a zero knowledge proof of knowledge of a solution for \(P\).↩

  3. Integers can be coded as sets in various ways. For example, one can encode \(0\) as \(\emptyset\) and if \(N\) is the set encoding \(n\), we can encode \(n+1\) using the set \(|N|+1\) cardinality set \(\{ N \} \cup N\).↩

  4. People have considered the notions of zero knowledge systems where soundness holds only with respect to efficient provers; these are known as argument systems.↩

  5. Goldreich, Micali and Wigderson were the first to come up with a zero knowledge proof for an NP complete problem, though the Hamiltoncity protocol here is from a later work by Blum. We use Naor’s commitment scheme.↩
